Waveguide Transition Wr10 to WRxx

Our waveguide transitions are 1″ long, available between 50 GHz and 1700 GHz and are mainly used for connection to power sensors with WR10 input waveguides. They are all manufactured using split block technology, which makes them highly precise, very robust and protected against bending and twisting. Due to this manufacturing technique and the goldplating of all surfaces, they offer minimal insertion losses and an excellent VSWR. The waveguides are equipped with UG387/U-M flanges on both sides as a standard, special requests can be taken into account at any time.

Category: Tags: , , , , ,

Description

Our waveguide transitions are 1″ long, available between 50 GHz and 1700 GHz and are mainly used for connection to power sensors with WR10 input waveguides. They are all manufactured using split block technology, which makes them highly precise, very robust and protected against bending and twisting. Due to this manufacturing technique and the goldplating of all surfaces, they offer minimal insertion losses and an excellent VSWR. The waveguides are equipped with UG387/U-M flanges on both sides as a standard, special requests can be taken into account at any time.

Key Features

  • Frequency: 50 GHz to 1700 GHz
  • robust and elegant design
  • manufactued in splitblock technology
  • low insertion loss
  • excellent VSWR

Applications

  • high precision measurement applications
  • measurement and instrumentation
  • VNA measurements
  • for Power Sensors with Wr10 input

Specifications

WG Band side A WG Band side B S21 typ. [dB] Frequency [GHz] Partnumber
WR10 WR8 0,15 90-140 00001618
WR10 WR6.5 0,2 110-170 00001619
WR10 WR5.1 0,25 140-220 00001620
WR10 WR3.4 0,4 220-330 00001621
WR10 WR2.2 0,6 330-500 00001622
WR10 WR1.5 0,8 500-750 00001623
WR10 WR1 1,5 750-1100 00001624
WR10 WR0.65 2,1 1100-1700 00001625

Diagram

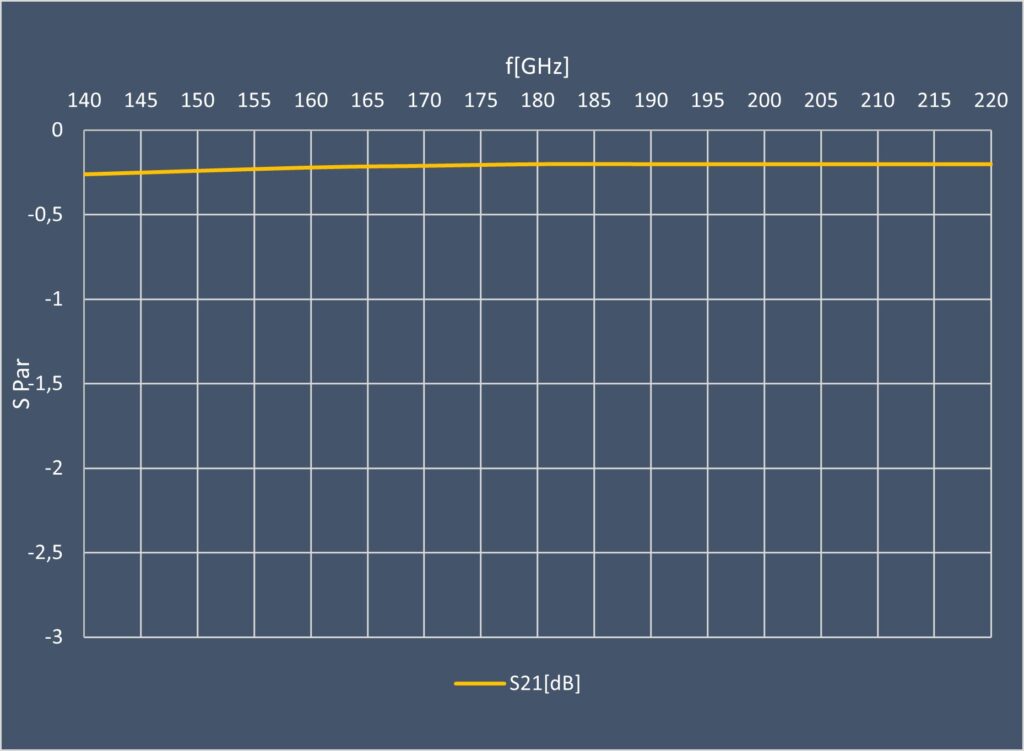

Insertion loss WR10 to WR5.1 [typ.]
Insertion loss WR10 to WR5.1 [typ .]
Mechanical Dimensions
Mechanical Dimensions

On request we are happy to provide the .stp model. In addition to our standard products, each component can be customized to meet your specific requirements. We are happy to implement index dowel pins as well as modified flanges on request.
